Dongguang Hengfu Roll Forming Machine Co., Ltd. delivers a professional laser welded pipe machine that combines stable structure, precise forming, and efficient welding into one complete production solution. With rich manufacturing experience and strict quality control, this equipment is built to run steadily for long hours, ensuring high productivity and consistent pipe quality for global metal processing customers.

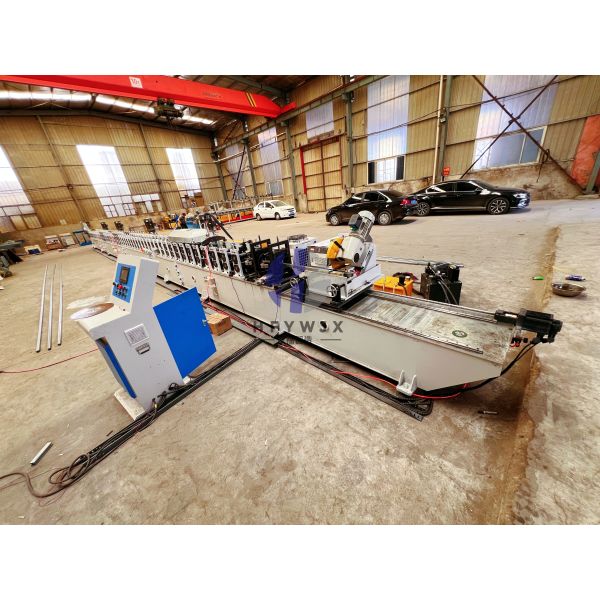

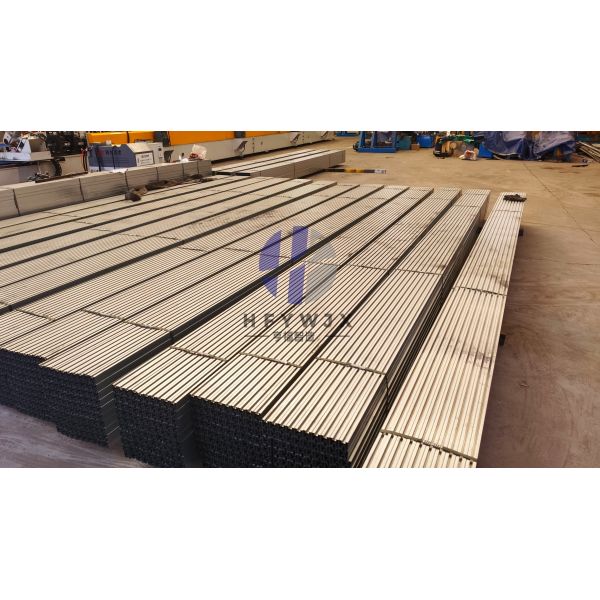

This integrated production line runs a complete and efficient process: material feeding, roll forming, laser welding, straightening, and non-stop cutting. It is specially designed for 0.6mm galvanized steel, ensuring smooth material movement, uniform forming, and excellent welding performance. The optimized workflow reduces material waste and delivers finished pipes with accurate size, good straightness, and clean surface finish.

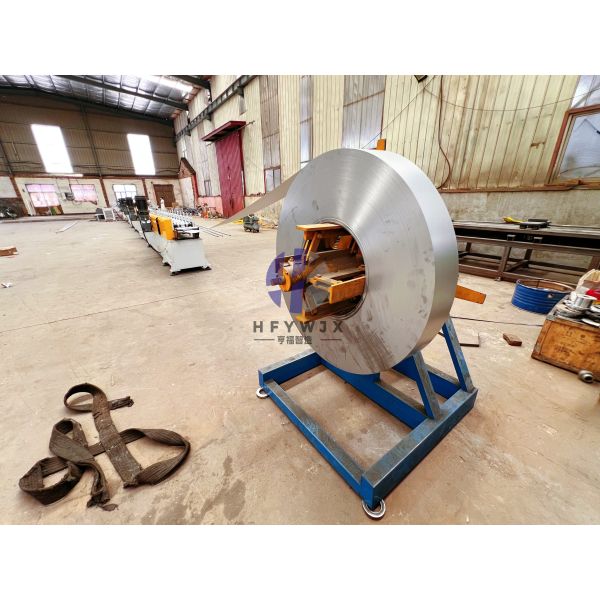

The decoiling system uses a heavy-duty integrated tension structure with 2.0 tons loading capacity, supporting a maximum strip width of 400mm and Φ500 coil inner diameter. The Φ80 high-rigidity main shaft and manual tensioning provide stable and reliable feeding, laying a solid foundation for high-precision forming and welding.
The main forming unit adopts a 30mm thick gantry frame processed by CNC milling for excellent rigidity and precision. It has 55 forming stations with Cr12 mould steel rollers (HRC55-58) and Φ60 45# steel shafts. Four 5.5KW motors and high-grade Harbin bearings ensure smooth, low-noise and long-lasting running. Production speed is adjustable from 1-15m/min through PLC and inverter control.
Equipped with a 3KW high-configuration laser welding system and PLC touch screen control, this machine offers stable welding quality and easy operation. Every part is carefully selected and strictly assembled by Dongguang Hengfu Roll Forming Machine Co., Ltd. to ensure low failure rate and long service life. It is a reliable, efficient, and cost-effective choice for modern pipe production.
What checks need to be performed before starting the machine?
Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
How should the machine be stored when not in use for an extended period?
Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
How many people are required to operate the machine?
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
How long is the warranty period?
The entire machine comes with a 12-month warranty, excluding wear parts.
Does the machine require a foundation?
It simply requires a level concrete floor; no complex foundation is necessary.
